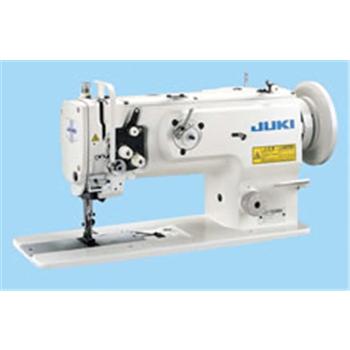

LU-1508N
The basic machine and its outstanding response to the sewing of heavy materials.
JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 1-needle and 2-needle machines, other models intended for special purposes are available, including models for extra heavy materials and one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.
✦
The new mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering.
✦
The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.
✦
The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.
✦
Even when a heavy material is used, the presser foot lift does not decrease. This means that the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.
✦
The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted up to the maximum of 6.5mm according to the height of multilayered portions of material.
✦
With the adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully and smoothly. Well tensed seams are consistently produced without pitch errors.
✦
With its maximum stitch length of 9mm, the machine can be applied to a broader range of uses.
✦
The 1-needle type machine has adopted a dual-tension mechanism, with which the machine can support high-tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light- to heavy-weight.
✦
The standard 1-needle type machine that delivers the basic functions and performance best suited to the sewing of heavy materials.
Recommended
for:
✔Upholstery
✔Leather
✔Furniture
✔Outdoor
Furniture
✔Saddle
Materials
